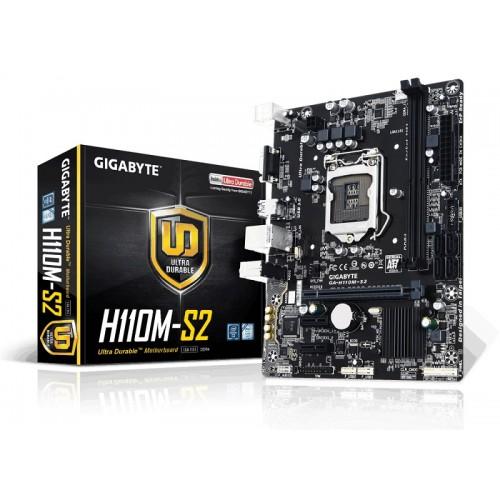

Gigabyte H110M-S2 Micro ATX Motherboard

Gigabyte H110M-S2 Micro ATX Motherboard

0 reviews
BDT 5100BDT 51000 % off
  • Product CodeGM - 14176
  • Delivery time3-5 days
  • AvailabiltyOut of Stock

Descriptions

  • Model: GA-H110M-S2
  • CPU: 7th/ 6th Generation Intel Processors
  • Chipset: Intel H110 Express
  • 2 x DDR4 DIMM
  • 3 x PCI Express slot
Basic Information
Supported CPUSupport for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
ChipsetIntel® H110 Express Chipset
BIOS1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
TypeDual channel DDR4 memory architecture
Slots2 x DIMM
Supported MemorySupport for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory32 GB
Graphics
Graphics1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Max Shared Memory1024 MB
Connector & Ports
D-Sub (s)1 x D-Sub
USB (s)Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported StorageChipset:
4 x SATA 6Gb/s connectors
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty03 Years
